Change History
| Document version | Description of changes | Change date |
|---|---|---|
| 1.2 | Description of Details70 field for “Send a Document” function is corrected | 2021-04-12 |
| 1.1 | Description of uniqueID and trnID XML fields for “List of Transactions” function is corrected | 2020-07-17 |
| 1.0 | Initial publication of documentation | 2017-01-13 |
Login Instructions
General Information
Enterprise Link PRO (E-Link PRO) allows having access to information of transactions, as well as submitting signed orders to the Bank for their subsequent fulfilment.
Service Activation

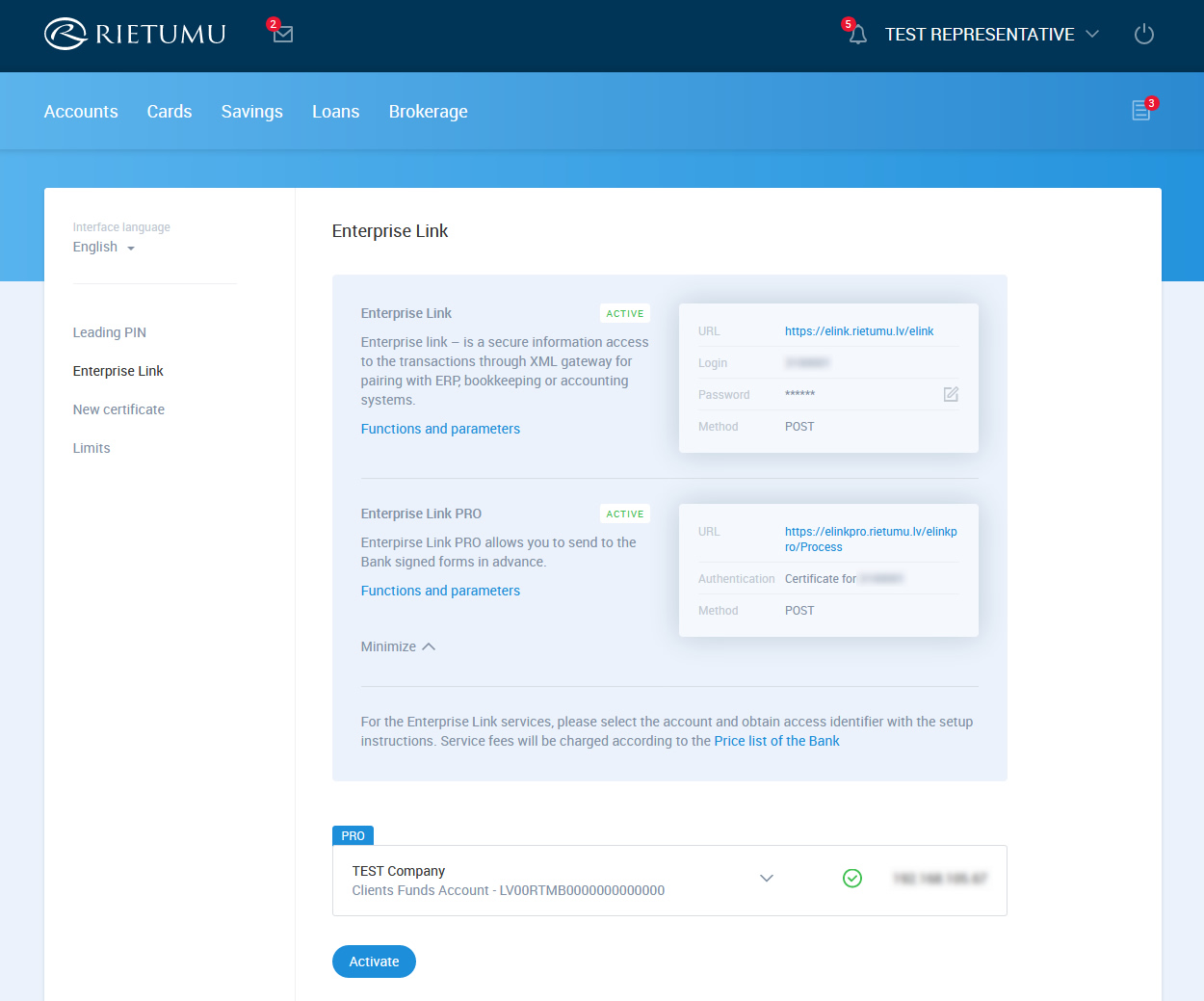

To activate the E-Link PRO, select the account in the iRietumu settings and click “Activate”.

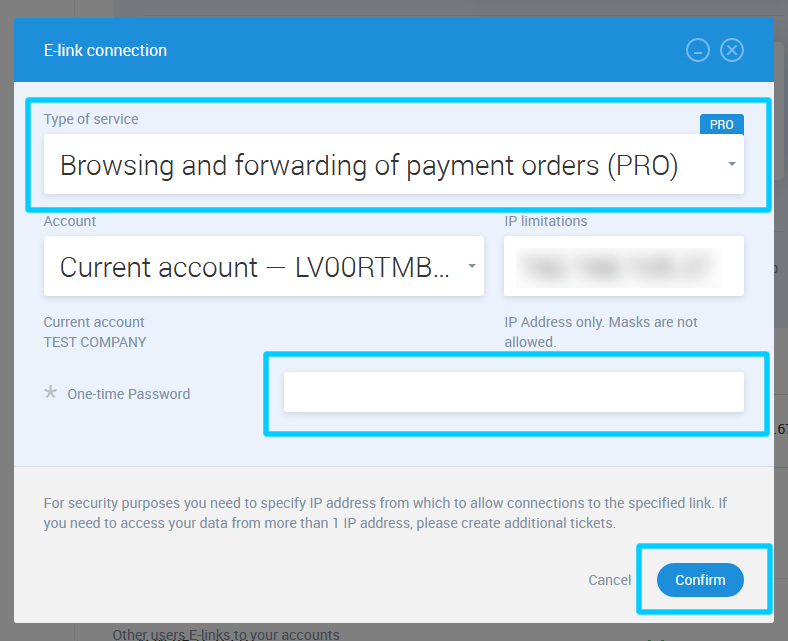

Choose the service “Browsing and forwarding of payment orders (PRO)”. Enter the one-time password from the Digipass and click “Confirm”.

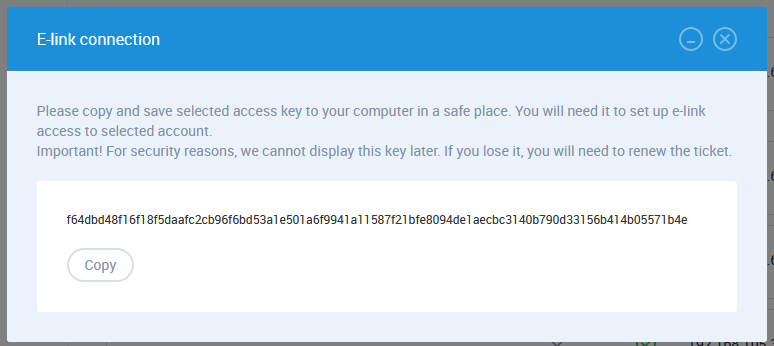

Copy the access identifier to use it in your application as an electronic pass further on (the “ticket” parameter).
Logic of Order Creation
A full cycle of an order creation consists of three steps. At the first step, the “Send a Document” function is used. This function registers the order and provides the reference number and results of checking the incoming document. If required, for example after the correction of errors, the document can be sent again.
At the second step, the document registered in the bank under its reference number must be requested by using the function “Receive a Document for Signature”. The XML document of the order will appear in one of the fields.
At the third step, the received XML document must be signed by the XML e-signature based on the certificate according XMLDSig standard and the signed document must be sent to the bank by using the function “Send the Signed Document”.
Service Invocation
Enquiry Format
Sample code:
curl -d "function=<Function name>&ticket=<Ticket>&refno=<Reference number>&language=<Language code>" -E ./<Filename>.pem:<Password> https://<domain>/elinkpro/Process
<?php
/**
* Process Enterprise Link Pro request
*
* make sure that curl.cainfo in php.ini is targeted to last CA certificates
* last extracted CA can be downloaded here: http://curl.haxx.se/ca/cacert.pem
*
* @param {Array} $arguments ASSOC array with arguments for request
* @param {String} $cert_path path to certificate file
* @param {String} $cert_passwd certificate password
* @return {String} response content
*/
function process_enterprise_link_pro( $arguments, $cert_path, $cert_passwd ) {
$ch = curl_init();
curl_setopt_array( $ch, array(
CURLOPT_POST => 1,
CURLOPT_HEADER => 0,
CURLOPT_FRESH_CONNECT => 1,
CURLOPT_RETURNTRANSFER => 1,
CURLOPT_FORBID_REUSE => 1,
CURLOPT_TIMEOUT => 120,
CURLOPT_URL => "https://<domain>/elinkpro/Process",
CURLOPT_POSTFIELDS => http_build_query($arguments),
CURLOPT_SSLCERT => $cert_path,
CURLOPT_SSLCERTPASSWD => $cert_passwd
) );
$result = curl_exec( $ch );
curl_close( $ch );
return $result;
}
?>
/**
* Enterprise Link Pro class for Java 7
*
* MAVEN dependencies:
* org.apache.httpcomponents : httpclient : 4.4
*/
public class EnterpriseLinkPro {
private static final String ELINK_PRO_HOST = "https://<domain>";
private static final String PROCESS_PATH = "/elinkpro/Process";
private static final String KEYSTORE_TYPE = "PKCS12";
private HttpHost host;
private HttpClient httpClient;
private String filePath;
private String password;
public EnterpriseLinkPro(String filePath, String password) throws GeneralSecurityException, IOException {
this.filePath = filePath;
this.password = password;
this.host = HttpHost.create(ELINK_PRO_HOST);
this.httpClient = HttpClientBuilder.create()
.setSSLSocketFactory(createSSLConnectionSocketFactory())
.build();
}
private SSLConnectionSocketFactory createSSLConnectionSocketFactory() throws GeneralSecurityException, IOException {
KeyStore keyStore = KeyStore.getInstance(KEYSTORE_TYPE);
keyStore.load(new FileInputStream(this.filePath), this.password.toCharArray());
SSLContext sslContext = SSLContextBuilder.create()
.loadKeyMaterial(keyStore, this.password.toCharArray())
.build();
return new SSLConnectionSocketFactory(sslContext);
}
public String process(List<NameValuePair> params) throws ParseException, IOException {
HttpPost httpPost = new HttpPost(PROCESS_PATH);
httpPost.setEntity(new UrlEncodedFormEntity(params));
HttpResponse response = httpClient.execute(host, httpPost);
return EntityUtils.toString(response.getEntity(), Consts.UTF_8);
}
}
#!/usr/bin/perl
use LWP::UserAgent;
use HTTP::Request::Common;
# Process Enterprise Link Pro request
#
# @param {Array} $arguments array with arguments for request
# @param {String} $cert_path path to certificate file
# @param {String} $cert_passwd certificate password
# @return {String} response content
sub process_enterprise_link_pro {
my ( $arguments, $cert_path, $cert_passwd ) = @_;
my $ua = LWP::UserAgent->new( ssl_opts => {
SSL_use_cert => 1,
SSL_cert_file => $cert_path,
SSL_passwd_cb => sub { $cert_passwd }
} );
my $req = POST 'https://<domain>/elinkpro/Process', $arguments;
my $response = $ua->request( $req );
return $response->content();
}
/**
* Enterprise Link Pro class for .NET 4.5
*
* Required references:
* System.Net.Http
* System.Net.Http.WebRequest
*/
public class EnterpriseLinkPro
{
private static readonly String ELINK_PRO_URL = "https://<domain>/elinkpro/Process";
private HttpClient client;
public EnterpriseLinkPro(String certPath, String password)
{
var certHandler = new WebRequestHandler();
certHandler.ClientCertificateOptions = ClientCertificateOption.Manual;
certHandler.UseDefaultCredentials = false;
certHandler.ClientCertificates.Add(new X509Certificate2(certPath, password));
this.client = new HttpClient(certHandler);
}
public async Task<String> Process(Dictionary<string, string> values)
{
var response = await client.PostAsync(ELINK_PRO_URL, new FormUrlEncodedContent(values));
var responseString = await response.Content.ReadAsStringAsync();
return responseString;
}
}
Address: https://<domain>/elinkpro/Process
Method: Post
Authorisation: Rietumu ID certificate for the configured activation is used.
Query parameters: The parameters differ depending on the function used. The functions are comprehensively described below.
Response Format for the Information Inquiry
Response structure:
<response>
<code>code of answer*</code>
<error/>
<!-- a set of tags depending on the function -->
</response>
The XML format is used for receiving a list of transactions and comprehensive information about them by using the functions “List of Transactions” and “Outgoing Payment Details” correspondingly.
* – returned function code
| Response Code | Description |
|---|---|
| 0 | The function is successfully finished |
| 1 | System failure |
| 2 | There are no transactions during the provided period in the provided currency |
| 4 | Error in parameters |
| 6 | Invalid electronic pass (ticket parameter) |
Response Format for Orders
Response structure:
{
"code": "code of answer*",
"error": "message of error",
"signatureRequired": [ "CER" ],
"refNo": "reference number",
"error_code": "returned function code",
"error_message": "message of error",
"execute_message": "message of successful execute",
"error_field": "name of the field containing an error",
"error_level": "error criticality code**"
}
The JSON format is used for making payment orders.
* – returned function code
| Response Code | Description |
|---|---|
| 0 | The function is successfully finished |
| 1 | System failure |
| 2 | Data not found |
| 4 | Error in parameters |
| 5 | No session or wrong session parameters |
| 6 | Invalid electronic pass (ticket parameter) |
** – error criticality index
| Response Code | Description |
|---|---|
| 0 | No errors |
| 2 | Non-critical error. The order cannot be executed at this moment (no money for service etc.) but will be processed later |
| 4 | Critical error. The order will not be processed |
Function “List of Transactions”
This function is used to receive all transactions on the account.
Enquiry Parameters
Sample code:
curl -d "function=Transactions&ticket=JGFIGDMG5965SF44557548958345975934&ccy=EUR&dateFrom=2012-01-26&dateTill=2012-02-28&language=RU&trnID=~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "Transactions",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"ccy" => "EUR",
"dateFrom" => "2012-01-26",
"dateTill" => "2012-02-28",
"language" => "RU",
"trnID" => "~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "Transactions"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("ccy", "EUR"));
params.add(new BasicNameValuePair("dateFrom", "2012-01-26"));
params.add(new BasicNameValuePair("dateTill", "2012-02-28"));
params.add(new BasicNameValuePair("language", "RU"));
params.add(new BasicNameValuePair("trnID", "~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "Transactions",
ticket => "JGFIGDMG5965SF44557548958345975934",
ccy => "EUR",
dateFrom => "2012-01-26",
dateTill => "2012-02-28",
language => "RU",
trnID => "~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "Transactions" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "ccy", "EUR" },
{ "dateFrom", "2012-01-26" },
{ "dateTill", "2012-02-28" },
{ "language", "RU" },
{ "trnID", "~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#" }
}
);
| Parameter | Description |
|---|---|
| function* | Transactions |
| ticket* | Electronic pass provided when the account is connected to Enterprise Link Pro service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| ccy | Currency code according to the ISO-4217 standard, for example ccy=EUR |
| dateFrom* | Date of the start of the statement period in ISO yyyy-MM-dd format, for example dateFrom=2012-01-26 |
| dateTill* | Date of the end of the statement period in ISO yyyy-MM-dd format, for example dateTill=2012-01-28 |
| language | Language of the statement (notes, etc.), for example language=RU. Possible options: RU, EN, LV |
| trnID | ID of the transaction the next page starts from (for a page-by-page statement). The parameter is not provided for the first page. |
* compulsory parameters
Description of XML Fields
Response Example:
<?xml version="1.0" encoding="UTF-8"?>
<response>
<code>0</code>
<error/>
<transactions>
<transaction>
<uniqueID>EQ-28022013-HEAD-@@SC-7</uniqueID>
<trnID>~bb~Y#~bbEUR~12387.76#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512150262#~t2~2524554564#~td~01112012#</trnID>
<date>2012-11-01</date>
<refno>AAA2004</refno>
<docno/>
<benname/>
<benacc/>
<benid/>
<benbank/>
<benbankswift/>
<details/>
<narrative>Interest repay - fund.</narrative>
<amount>-9.82</amount>
<currency>EUR</currency>
<saldo>12387.76</saldo>
<trtype>YP</trtype>
<trntype>EQ_440</trntype>
<trndesc>Interest repay - fund.</trndesc>
<tcf>Y</tcf>
</transaction>
<transaction>
<uniqueID>EQ-28022013-HEAD-@@SC-8</uniqueID>
<trnID>~bb~Y#~bbEUR~12183.39#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030097#~of~seq_no#~t1~2512436843#~t2~2525131368#~td~12112012#</trnID>
<date>2012-11-12</date>
<refno>I5IC11129901953</refno>
<docno/>
<benname/>
<benacc/>
<benid/>
<benbank/>
<benbankswift/>
<details>6.97 LVL -- 10.00 EUR (0.697500000)</details>
<narrative>6.97 LVL -- 10.00 EUR (0.697500000)</narrative>
<amount>10.0</amount>
<currency>EUR</currency>
<saldo>12183.39</saldo>
<trtype>CONV</trtype>
<trntype>EQ_543</trntype>
<trndesc>Currency Exchange</trndesc>
<tcf>Y</tcf>
</transaction>
<transaction>
<uniqueID>EQ-28022013-HEAD-@@SC-9</uniqueID>
<trnID>~bb~Y#~bbLVL~2638.06#~cbd~03122012#~ctd~03122012#~fbd~31122000#~hd~05032005#~ls~2513030256#~of~seq_no#~t1~2512299603#~t2~2524860183#~td~07112012#</trnID>
<date>2012-11-07</date>
<refno>IVIC11079900909</refno>
<docno>11-1</docno>
<benname>ben name</benname>
<benacc>LV70RIKO000000000000</benacc>
<benid>111111-22222</benid>
<benbank>AS DNB BANKA</benbank>
<benbankswift>RIKOLV2X</benbankswift>
<details>konta papild.</details>
<narrative>59: /ID/ 111111-22222, ben name, Rez LV, Nr.LV70RIKO000000000000; 57: AS DNB BANKA, RIKOLV2X; 70: konta papild.;</narrative>
<amount>-100.0</amount>
<currency>LVL</currency>
<saldo>2638.06</saldo>
<trtype>OO</trtype>
<trntype>EQ_471</trntype>
<trndesc>External payment</trndesc>
<tcf>Y</tcf>
</transaction>
</transactions>
<more>false</more>
</response>
| XML Field | Description |
|---|---|
| <uniqueID> | Unique identifier of the transaction |
| <trnID> | The transaction ID that is used in the request to get the next page |
| <date> | Transaction date |
| <refno> | Reference number of the transaction |
| <docno> | Document number set by the client |
| <benname> | Beneficiary name |
| <benacc> | Beneficiary account number |
| <benid> | Beneficiary identifier |
| <benbank> | Beneficiary bank |
| <benbankswift> | SWIFT code of the beneficiary bank |
| <details> | Transaction details |
| <amount> | Transaction amount. Sign “-“ means that it is a debit transaction |
| <currency> | Transaction currency |
| <saldo> | Balance after the transaction |
| <trtype> | DTransaction type |
| <trntype> | Transaction type from ABC |
| <trndesc> | Description of the transaction type |
| <more> | Sign of the availability of transactions. The “true” parameter means that not all transactions have been obtained and continuation must be enquired about (with an indication of the identifier of the last obtained transaction <trnID>) |
Function “Outgoing Payment Details”
This function is used for receiving information on the specific outgoing transaction.
Enquiry Parameters
Sample code:
curl -d "function=OutgoingPaymentDetails&ticket=JGFIGDMG5965SF44557548958345975934&refno=IVID05249900342&language=RU" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "OutgoingPaymentDetails",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"refno" => "IVID05249900342",
"language" => "RU"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "OutgoingPaymentDetails"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("refno", "IVID05249900342"));
params.add(new BasicNameValuePair("language", "RU"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "OutgoingPaymentDetails",
ticket => "JGFIGDMG5965SF44557548958345975934",
refno => "IVID05249900342",
language => "RU"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "OutgoingPaymentDetails" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "refno", "IVID05249900342" },
{ "language", "RU" }
}
);
| Parameter | Description |
|---|---|
| function* | OutgoingPaymentDetails |
| ticket* | Electronic pass provided during account login for the service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| refno* | Reference number of the transaction |
| language | Language of the statement (notes, etc.), for example language=RU. Possible options: RU, EN, LV |
* compulsory parameters
Description of XML Fields
Response Example:
<?xml version="1.0" encoding="UTF-8"?>
<response>
<code>0</code>
<error/>
<details>
<ref_no>IVID05249900342</ref_no>
<state_id>2</state_id>
<doc_number/>
<reg_date>2013-05-24T00:00:00</reg_date>
<reg_datetime>2013-05-24T16:04:58</reg_datetime>
<urgency>Standart</urgency>
<urgency_code>1</urgency_code>
<rem_acc>LV10RTMB0000000000000</rem_acc>
<rem_name>ABC Ltd.</rem_name>
<rem_addr>RĪGA LATVIA</rem_addr>
<rem_regno>123456789-0</rem_regno>
<rem_country>LV</rem_country>
<rem_res>RES</rem_res>
<pmnt_amount>1000.0</pmnt_amount>
<pmnt_ccy>AUD</pmnt_ccy>
<pmnt_value/>
<cor_name/>
<cor_addr/>
<cor_addr1/>
<cor_bic/>
<cor_eltype/>
<cor_el/>
<cor_country/>
<bbank_acc/>
<bbank_name>UBS AG</bbank_name>
<bbank_addr>ZURICH</bbank_addr>
<bbank_addr1>45, BAHNHOFSTRASSE</bbank_addr1>
<bbank_bic>UBSWCHZH80A</bbank_bic>
<bbank_country>CH</bbank_country>
<bbank_eltype/>
<bbank_el/>
<ben_name>ABC HOLDINGS LIMITED</ben_name>
<ben_addr>UNIT 88,19THFLOOR BASE</ben_addr>
<ben_addr1>200 DEF ROAD,Germany</ben_addr1>
<ben_acciban>CH5000111235FJ1234567</ben_acciban>
<ben_country>SZ</ben_country>
<ben_regno>123</ben_regno>
<ben_res>NONRES</ben_res>
<charge_type>BEN</charge_type>
<pmnt_details>test ALL FIELDS</pmnt_details>
<add_info>Поле Information to the Bank.</add_info>
<rietumuid>000000</rietumuid>
<charge_amnt>0.0</charge_amnt>
<charge_ccy/>
<amk_code>213</amk_code>
<tran_type_desc>Payment to another bank</tran_type_desc>
<lng>EN</lng>
<oper_type>Debit</oper_type>
<state_id_desc>Rejected</state_id_desc>
<cor_bank_acc/>
<oper_type_v>D</oper_type_v>
<pmnt_amount_text>one thousand, 00</pmnt_amount_text>
</details>
</response>
| XML Field | Description |
|---|---|
| <ref_no> | Reference number of the transaction |
| <state_id> | Transaction state * |
| <doc_number> | Document number set by the client |
| <reg_date> | Transaction registration date |
| <reg_datetime> | Date and time of the registration |
| <urgency> | Urgency of the transaction ** |
| <urgency_code> | Urgency code ** |
| <rem_acc> | Account of the sender |
| <rem_name> | Name of the sender |
| <rem_addr> | Address of the sender |
| <rem_regno> | Registration name of the sender |
| <rem_country> | Country of the sender |
| <rem_res> | Whether the sender is a resident of Latvia. Possible options: RES, NONRES |
| <pmnt_amount> | Transaction amount |
| <pmnt_ccy> | Transaction currency |
| <pmnt_value> | Value date |
| <cor_name> | Name of the correspondent bank |
| <cor_addr> | Address of the correspondent bank |
| <cor_addr1> | |
| <cor_bic> | SWIFT of the correspondent bank |
| <cor_eltype> | National code type |
| <cor_el> | National code |
| <cor_country> | Country of the correspondent bank |
| <bbank_acc> | Account of the beneficiary bank |
| <bbank_name> | Name of the beneficiary bank |
| <bbank_addr> | Address of the beneficiary bank |
| <bbank_addr1> | |
| <bbank_bic> | SWIFT of the beneficiary bank |
| <bbank_country> | Country of the beneficiary bank |
| <bbank_eltype> | National code type |
| <bbank_el> | National code |
| <ben_name> | Beneficiary name |
| <ben_acciban> | Beneficiary account in IBAN format |
| <ben_addr> | Address of the beneficiary |
| <ben_addr1> | |
| <ben_country> | Country of the beneficiary |
| <ben_regno> | Registration number of the beneficiary |
| <ben_res> | Whether the beneficiary is a resident of Latvia. Possible options: RES, NONRES |
| <charge_type> | Charge type *** |
| <pmnt_details> | Payment details |
| <add_info> | Additional information |
| <rietumuid> | Rietumu ID |
| <charge_amnt> | Charge amount. The value is not returned. |
| <charge_ccy> | Charge currency. The value is not returned. |
| <amk_code> | AMK code of the transaction. Is used when a resident of Latvia remits more than EUR 5 000 to a non-resident. |
| <tran_type_desc> | Transaction type description |
| <lng> | Language used in the enquiry |
| <oper_type> | Operation type. Possible options (the language depends on |
| <state_id_desc> | Code of the transaction state * |
| <cor_bank_acc> | Account number of the beneficiary bank in the correspondent bank |
| <oper_type_v> | Operation type code. Possible options: D, C |
| <pmnt_amount_text> | Payment amount in words |
* - possible options of the transaction state
| State Description | Code |
|---|---|
| In the bank | 0, 3, 4 |
| For signature | 20 |
| Deferred | 1 |
| Cancelled | 2, 7 |
| Sent | 5, 6 |
** - possible options of urgency
| Description of Urgency | Code |
|---|---|
| Standard | 1 |
| Express | 2 |
| Economy | 3 |
*** - possible options of charge types
| Charge Type | Description |
|---|---|
| OUR | Paid by the sender |
| BEN | Paid by the beneficiary |
| SHA | Paid separately |
Function “Send a Document”
This function registers a payment order in the bank and returns errors, when such are found.
Enquiry Parameters
Sample code:
curl -d "function=PostDocument&ticket=JGFIGDMG5965SF44557548958345975934&language=RU&doc=<XML content>" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "PostDocument",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"language" => "RU",
"doc" => "<XML content>"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "PostDocument"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("language", "RU"));
params.add(new BasicNameValuePair("doc", "<XML content>"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "PostDocument",
ticket => "JGFIGDMG5965SF44557548958345975934",
language => "RU",
doc => "<XML content>"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "PostDocument" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "language", "RU" },
{ "doc", "<XML content>" }
}
);
| Parameter | Description |
|---|---|
| function* | PostDocument |
| ticket* | Electronic pass provided during account login for the service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| language | Language used for notifying about errors. Possible options: RU, EN, LV |
| doc* | Document text in XML format |
* compulsory parameters
XML Format of a Payment Order
Example of XML Document:
<RBdocument type="payment">
<DocNo>1-3</DocNo>
<SendCopyeMail/>
<SendCopyiRietumu>N</SendCopyiRietumu>
<User>000000</User>
<System></System>
<AddInfo72>additional info</AddInfo72>
<AmkCode>0</AmkCode>
<Amount>100.00</Amount>
<BenBank>
<BenBankAcc>A111111</BenBankAcc>
<BenBankAddr1>AXION SWISS BANK SA</BenBankAddr1>
<BenBankAddr2>LUGANO</BenBankAddr2>
<BenBankAddr3>1, VIA BOSSI</BenBankAddr3>
<BenBankBic>UNCECH22XXX</BenBankBic>
<BenBankCountry>CH</BenBankCountry>
<BenBankEl/>
<BenBankElType/>
</BenBank>
<Beneficiary>
<BenAcc>CH0000000000000000000</BenAcc>
<BenAddr1>TEST COMPANY LIMITED</BenAddr1>
<BenAddr2>address line 1</BenAddr2>
<BenAddr3>address line 2</BenAddr3>
<BenCountry>CH</BenCountry>
<BenID>1234567</BenID>
</Beneficiary>
<Ccy>EUR</Ccy>
<Charge>OUR</Charge>
<Details70>payment details</Details70>
<Intermediary>
<IntBankAcc/>
<IntBankAddr1>ASIA PACIFIC FINANCIAL SERVICES CHI</IntBankAddr1>
<IntBankAddr2>NA LIMITED</IntBankAddr2>
<IntBankAddr3>LANZHOU GANSU</IntBankAddr3>
<IntBankBic>APFVCNB1XXX</IntBankBic>
<IntBankCountry>CN</IntBankCountry>
<IntBankEl/>
<IntBankElType/>
</Intermediary>
<Rate>0.0</Rate>
<Sender>
<SenderAcc>LV10RTMB0000000000000</SenderAcc>
<SenderCountry/>
</Sender>
<Urgency>1</Urgency>
</RBdocument>
Successful JSON response:
{
"code": 0,
"error": "",
"signatureRequired": [ "CER", "DGP", "OTP" ],
"refNo": "HVEE07099900001",
"error_code": "IERR_OK",
"error_message": "The order has been executed (IERR_OK)",
"execute_message": "",
"error_field": "",
"error_level": 0,
"fee_ccy": "",
"fee_amount": 0.0,
"errors": [
{
"error_code": "IERR_OK",
"error_message": "The order has been executed (IERR_OK)",
"execute_message": "",
"error_field": "",
"error_level": 0
}
]
}
Successful JSON response with errors:
{
"code": 0,
"error": "",
"signatureRequired": [ "CER", "DGP", "OTP" ],
"refNo": "HVEE07099900002",
"error_code": "IPM_BENNOT2",
"error_message": "Beneficiary name not found\/ not indicated (Beneficiary name not found)",
"execute_message": "",
"error_field": "BenAddr1",
"error_level": 4,
"fee_ccy": "",
"fee_amount": 0.0,
"errors": [
{
"error_code": "IPM_BENNOT2",
"error_message": "Beneficiary name not found\/ not indicated (Beneficiary name not found)",
"execute_message": "",
"error_field": "BenAddr1",
"error_level": 4
},
{
"error_code": "IERR_FVALUE",
"error_message": "Postponed payment. The payment instruction will be postponed until selected execution date. (Future Value)",
"execute_message": "",
"error_field": "",
"error_level": 2
}
]
}
| Field | Description | Length | Allowed Values | Required |
|---|---|---|---|---|
| <DocNo> | Number of the document | 15 | charset_All* | N |
| <System> | System, leave empty | Y | ||
| <User> | User identifier - Rietumu ID | 6 | 0-9 | Y |
| <Amount> | Payment amount | 15.2 | Y | |
| <Ccy> | Currency | 3 | ISO 4217, 3-digit code | Y |
| <Sender> | ||||
| <SenderAcc> | Sender account | 21 | IBAN. Always an account at Rietumu | Y |
| </Sender> | ||||
| <Beneficiary> | ||||
| <BenAcc> | Receiver’s account | 34 | charset_ACCOUNT** | Y |
| <BenAddr1> | Receiver’s name | 34 | charset_All* | Y |
| <BenAddr2> | Receiver’s address (line 1) | 34 | charset_All* | N |
| <BenAddr3> | Receiver’s address (line 2) | 34 | charset_All* | N |
| <BenCountry> | Receiver’s country of residence | 2 | ISO 3166-1 alpha-2 code | Y |
| <BenID> | Registration number of the receiver | 34 | charset_All* | N |
| </Beneficiary> | ||||
| <BenBank> | ||||
| <BenBankAcc> | Beneficiary Bank account at the correspondent bank (RKZ – payment processing centre) | 34 | charset_ACCOUNT** | N |
| <BenBankAddr1> | Name of the Beneficiary Bank | 34 | charset_All* | Y |
| <BenBankAddr2> | Address of Beneficiary Bank 1 | 34 | charset_All* | N |
| <BenBankAddr3> | Address of Beneficiary Bank 2 | 34 | charset_All* | N |
| <BenBankBic> | SWIFT of the Beneficiary Bank | 11 | A-Za-z0-9 | N |
| <BenBankCountry> | Country of the Beneficiary Bank | 2 | ISO 3166-1 alpha-2 code | Y |
| <BenBankEl> | National clearing code | 30 | charset_All* | N |
| <BenBankElType> | Clearing code type | 2 | ELTYPE*** | Y, if <BenBankEl> is filled |
| </BenBank> | ||||
| <Intermediary> | ||||
| <IntBankAcc> | Account in Settlement Center (RKZ – payment processing centre) | 34 | charset_ACCOUNT** | N |
| <IntBankAddr1> | Name of the Correspondent Bank | 34 | charset_All* | N |
| <IntBankAddr2> | Address of Correspondent Bank 1 | 34 | charset_All* | N |
| <IntBankAddr3> | Address of Correspondent Bank 2 | 34 | charset_All* | N |
| <IntBankBic> | SWIFT of the Correspondent Bank | 11 | A-Za-z0-9 | N |
| <IntBankCountry> | Country of the Correspondent Bank | 2 | ISO 3166-1 alpha-2 code | Y, if <IntBankAddr1> is filled |
| <IntBankEl> | National clearing code | 30 | charset_All* | N |
| <IntBankElType> | Clearing code type | 2 | ELTYPE*** | Y, if <IntBankEl> is filled |
| </Intermediary> | ||||
| <Details70> | Note | 140 | charset_All* | Y |
| <AddInfo72> | Additional information | 200 | charset_All* | N |
| <Rate> | Fixed value “0.0” | 1.1 | Y | |
| <SendCopyeMail> | E-mail address for receiving a SWIFT copy. Paid service | 60 | A-Za-z0-9а-яА-Я!#$%’*+-/=?^_`{|}~.@ | N |
| <SendCopyiRietumu> | SWIFT copy receipt at iRietumu. Paid service | 1 | Y/N | N |
| <Urgency> | Urgency | 1 | 1 - Normal payment 2 - Urgent payment 3 - Economic payment |
Y |
| <DesiredDate> | Desired execute date | 10 | YYYY-MM-DD | N |
| <Charge> | Commission type | 3 | BEN - at the expense of the receiver OUR - at the expense of the sender SHA - separately DEF - automatic (the value will be chosen by the bank depending on the payment parameters) |
Y |
| <AmkCode> | External payment code according to the reference book of the Bank of Latvia | 3 | 0-9 | Y, when payment is made from a LV resident to a LV non-resident in an amount exceeding EUR 10000 |
* – A-Za-z0-9?:().,’+{};!?&-_[]`/“<space>а-яА-Я <Latvian alphabet symbols>
** – A-Za-z0-9?:().,’+{};!?&-_[]`/”<space>
*** – two-digit code, the values of which are presented in the table
| Code | Description |
|---|---|
| RU | Bank Identification Code (БИК/BIC) |
| AT | Austrian Bankleitzahl |
| AU | Australian Bank State Branch (BSB) |
| BL | German Bankleitzahl |
| CC | Canadian Payments Association Payment Routing |
| CH | CHIPS Universal Identifier |
| CP | USA CHIPS Participant Identifier |
| ES | Spanish Domestic Interbanking Code |
| FW | USA Fedwire Routing Number |
| HK | Bank Code of Hong Kong |
| IE | Irish National Clearing Code (NSC) |
| IT | Italian Domestic Identification Code |
| MF | MFO (Other) |
| NZ | New Zealand National Clearing Code |
| PT | Portuguese National Clearing Code |
| SC | UK Domestic Sort Code |
| SW | Swiss Clearing Code (BC or SIC) |
Function “Receive a Document for Signature”
This function returns the earlier registered document for its further signature.
Enquiry Parameters
Sample code:
curl -d "function=GetDocumentForSign&ticket=JGFIGDMG5965SF44557548958345975934&language=RU&refNo=HVEE07099900001" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "GetDocumentForSign",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"language" => "RU",
"refNo" => "HVEE07099900001"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "GetDocumentForSign"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("language", "RU"));
params.add(new BasicNameValuePair("refNo", "HVEE07099900001"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "GetDocumentForSign",
ticket => "JGFIGDMG5965SF44557548958345975934",
language => "RU",
refNo => "HVEE07099900001"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "GetDocumentForSign" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "language", "RU" },
{ "refNo", "HVEE07099900001" }
}
);
| Parameter | Description |
|---|---|
| function* | GetDocumentForSign |
| ticket* | Electronic pass provided during account login for the service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| language | Language used for notifying about errors. Possible options: RU, EN, LV |
| refNo* | Reference number of the document |
* compulsory parameters
Response Example:
{
"code": 0,
"error": "",
"signatureRequired": [ "CER" ],
"expectedSignatures": [],
"existingSignatures": [],
"doc": "Text of the XML document"
}
Function “Send the Signed Document”
Sample code:
# W3C specification for XMLDSig is available here: http://www.w3.org/TR/xmldsig-core/
# OpenSSL documentation is available here: https://www.openssl.org/docs/apps/openssl.html
#
# Manually signing XML document using console tools is counterproductive so please check other solutions.
<?php
/**
* Sign XML content using XMLDSig enveloped method for PHP 5.3
*
* Requires classes XMLSecurityKey and XMLSecurityDSig
* from https://github.com/formapro/xmlseclib
*
* @param string $XMLContent
* @param string $certificatePath
* @param string $certificatePassword
*
* @return string signed XML
* @throws Exception
*
* Usage:
* $signedContent = XMLDSig_SignEnveloped($contentToSign, './cert.pem', 'qwerty');
*/
function XMLDSig_SignEnveloped($XMLContent, $certificatePath, $certificatePassword) {
if (!function_exists('openssl_pkey_get_private'))
throw new Exception('Openssl PHP extension is required in ');
$certificateContent = file_get_contents($certificatePath);
$privateKey = openssl_pkey_get_private($certificateContent, $certificatePassword);
if (!$privateKey)
throw new Exception("Unable to load private key in ");
$keyDetails = openssl_pkey_get_details($privateKey);
$document = new DOMDocument();
$document->loadXML($XMLContent);
$objXMLSecurityKey = new XMLSecurityKey(XMLSecurityKey::RSA_SHA1, array('type' => 'private'));
$objXMLSecurityKey->loadKey($privateKey);
$objXMLSecDSig = new XMLSecurityDSig("");
$objXMLSecDSig->setCanonicalMethod(XMLSecurityDSig::EXC_C14N_COMMENTS);
$objXMLSecDSig->addReference($document, XMLSecurityDSig::SHA1, array('http://www.w3.org/2000/09/xmldsig#enveloped-signature'), array('force_uri' => true));
$objXMLSecDSig->sign($objXMLSecurityKey, $document->documentElement);
$objXMLSecDSig->add509Cert($certificateContent);
$RSAKeyValueTpl = "<KeyValue><RSAKeyValue><Modulus>%s</Modulus><Exponent>%s</Exponent></RSAKeyValue></KeyValue>";
$modulus = base64_encode($keyDetails['rsa']['n']);
$exponent = base64_encode($keyDetails['rsa']['e']);
$RSAKeyValue = sprintf($RSAKeyValueTpl, $modulus, $exponent);
return str_replace("</KeyInfo>", $RSAKeyValue . "</KeyInfo>", $document->saveXML());
}
?>
/**
* XMLDSig class for Java 7
*
* Required:
* 1. Bouncy Castle 1.38 or newer
* from https://www.bouncycastle.org/java.html
*
* 2. Java Cryptography Extension (JCE) Unlimited Strength Jurisdiction Policy Files
* from http://www.oracle.com/technetwork/java/javase/downloads/jce-7-download-432124.html
*
* Usage:
* XMLDSig xmlDSig = new XMLDSig("./cert.p12", "qwerty");
* String signedContent = xmlDSig.signEnveloped(contentToSign);
*/
public class XMLDSig {
private KeyStore keyStore;
private String alias;
private XMLSignature signature;
private DocumentBuilderFactory documentBuilderFactory;
private TransformerFactory transformerFactory;
private String filePath;
private String password;
public XMLDSig(String filePath, String password) throws GeneralSecurityException, IOException {
this.filePath = filePath;
this.password = password;
Security.addProvider(new BouncyCastleProvider());
keyStore = loadKeystore();
alias = getAlias();
signature = createSignature();
documentBuilderFactory = DocumentBuilderFactory.newInstance();
documentBuilderFactory.setNamespaceAware(true);
transformerFactory = TransformerFactory.newInstance();
}
private KeyStore loadKeystore() throws GeneralSecurityException, IOException {
KeyStore keyStore = KeyStore.getInstance("PKCS12", "BC");
keyStore.load(new FileInputStream(filePath), password.toCharArray());
return keyStore;
}
private String getAlias() throws GeneralSecurityException {
String alias = null;
Enumeration<String> enumeration = keyStore.aliases();
while(enumeration.hasMoreElements()) {
alias = (String)enumeration.nextElement();
break;
}
if (alias.isEmpty()) {
throw new RuntimeException("Key store does not contain entry with alias");
}
return alias;
}
private XMLSignature createSignature() throws GeneralSecurityException {
XMLSignatureFactory signatureFactory = XMLSignatureFactory.getInstance("DOM");
return signatureFactory.newXMLSignature(createSignedInfo(signatureFactory), createKeyInfo(signatureFactory));
}
private SignedInfo createSignedInfo(XMLSignatureFactory signatureFactory) throws GeneralSecurityException {
CanonicalizationMethod canonicalizationMethod = signatureFactory.newCanonicalizationMethod(CanonicalizationMethod.INCLUSIVE_WITH_COMMENTS,
(C14NMethodParameterSpec) null);
SignatureMethod signatureMethod = signatureFactory.newSignatureMethod(SignatureMethod.RSA_SHA1, null);
DigestMethod digestMethod = signatureFactory.newDigestMethod(DigestMethod.SHA1, null);
Transform transform = signatureFactory.newTransform(Transform.ENVELOPED, (TransformParameterSpec) null);
Reference reference = signatureFactory.newReference("", digestMethod, Collections.singletonList(transform), null, null);
return signatureFactory.newSignedInfo(canonicalizationMethod, signatureMethod, Collections.singletonList(reference));
}
private KeyInfo createKeyInfo(XMLSignatureFactory signatureFactory) throws GeneralSecurityException {
KeyInfoFactory keyInfoFactory = signatureFactory.getKeyInfoFactory();
ArrayList<XMLStructure> keys = new ArrayList<XMLStructure>();
X509Certificate certificate = getX509Certificate();
keys.add(keyInfoFactory.newKeyValue(certificate.getPublicKey()));
X509Data certificateInfo = keyInfoFactory.newX509Data(Collections.singletonList(certificate));
keys.add(certificateInfo);
return keyInfoFactory.newKeyInfo(keys);
}
private X509Certificate getX509Certificate() throws GeneralSecurityException {
return (X509Certificate) keyStore.getCertificate(alias);
}
private PrivateKey getX509PrivateKey() throws GeneralSecurityException {
return (PrivateKey) keyStore.getKey(alias, password.toCharArray());
}
public String signEnveloped(String documentSource) throws Exception {
DocumentBuilder newDocumentBuilder = documentBuilderFactory.newDocumentBuilder();
Document document = newDocumentBuilder.parse(new InputSource(new StringReader(documentSource)));
DOMSignContext signContext = new DOMSignContext(getX509PrivateKey(), document.getDocumentElement());
signature.sign(signContext);
StringWriter writer = new StringWriter();
Transformer transformer = transformerFactory.newTransformer();
transformer.transform(new DOMSource(document), new StreamResult(writer));
return writer.toString();
}
}
#!/usr/bin/perl
use XML::XPath;
use MIME::Base64;
use Crypt::OpenSSL::X509;
use Crypt::OpenSSL::RSA;
use File::Slurp;
use Digest::SHA1 qw(sha1);
use XML::CanonicalizeXML;
# Sign XML content using XMLDSig enveloped method for Perl 5.20
#
# Certificate in PEM format without encryption can be extracted from P12 certificate
# openssl pkcs12 -in ATTID1TR.p12 -out certkey.pem -clcerts -nodes
#
# @param {String} $XMLContent XML content to be signed
# @param {String} $certificatePath path to certificate file in PEM format without encryption
# @return {String} XML content
#
# Usage:
# my $signedContent = XMLDSig_SignEnveloped($contentToSign, "./certkey.pem");
sub XMLDSig_SignEnveloped {
my ( $XMLContent, $certificatePath ) = @_;
my $xml;
my $parser = XML::XPath->new( xml => $XMLContent );
my $nodeset = $parser->find('/');
foreach my $node ($nodeset->get_nodelist) {
$xml = XML::XPath::XMLParser::as_string( $node );
last;
}
$signed = $XMLContent;
my $certContent = read_file($certificatePath);
my $rsaKey = Crypt::OpenSSL::RSA->new_private_key( $certContent );
$rsaKey->use_pkcs1_padding();
my $bigNum = ( $rsaKey->get_key_parameters() )[1];
my $bin = $bigNum->to_bin();
my $exp = encode_base64( $bin, '' );
$bigNum = ( $rsaKey->get_key_parameters() )[0];
$bin = $bigNum->to_bin();
my $mod = encode_base64( $bin, '' );
my $keyContent = "<KeyValue><RSAKeyValue><Modulus>$mod</Modulus><Exponent>$exp</Exponent></RSAKeyValue></KeyValue>";
my $x509 = Crypt::OpenSSL::X509->new_from_string( $certContent );
my $certString = $x509->as_string();
$certString =~ s/-----BEGIN CERTIFICATE-----//;
$certString =~ s/-----END CERTIFICATE-----//;
$certString =~ s/\n//g;
$certContent = "<X509Data><X509Certificate>$certString</X509Certificate></X509Data>";
my $keyInfo = "<KeyInfo>".$certContent.$keyContent."</KeyInfo>";
my $canonical = XML::CanonicalizeXML::canonicalize( $xml, '<XPath>(//. | //@* | //namespace::*)</XPath>', "", 1, 1 );
my $bin_digest = sha1( $canonical );
my $digest = encode_base64( $bin_digest, '' );
my $digest_xml = qq{<Reference URI=""><Transforms><Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/></Transforms><DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/><DigestValue>$digest</DigestValue></Reference>};
my $signed_info = qq{<SignedInfo xmlns="http://www.w3.org/2000/09/xmldsig#"><CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#WithComments"/><SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>$digest_xml</SignedInfo>};
$canonical_sign_info = XML::CanonicalizeXML::canonicalize( $signed_info, '<XPath>(//. | //@* | //namespace::*)</XPath>', "", 1, 1 );
my $bin_signature = $rsaKey->sign( $canonical_sign_info );
my $signature = encode_base64( $bin_signature, "" );
my $signature_xml = qq{<Signature xmlns="http://www.w3.org/2000/09/xmldsig#">$signed_info<SignatureValue>$signature</SignatureValue>$keyInfo</Signature>};
$signed =~ s/(<\/[^>]*>)$/$signature_xml$1/;
return $signed;
};
/**
* XMLDSig class for .NET 4.5
*
* Required references:
* System.Security
*
* Usage:
* var xmlDSig = new XMLDSig("./cert.p12", "qwerty");
* var signedContent = xmlDSig.SignEnveloped(contentToSign);
*/
public class XMLDSig
{
private X509Certificate2 x509Certificate2;
private RSACryptoServiceProvider privateKey;
public XMLDSig(String certificatePath, String certificatePassword)
{
x509Certificate2 = new X509Certificate2(certificatePath, certificatePassword);
privateKey = (RSACryptoServiceProvider)x509Certificate2.PrivateKey;
}
public String SignEnveloped(String XMLContent)
{
var document = new XmlDocument();
document.PreserveWhitespace = true;
document.LoadXml(XMLContent);
SignedXml signedXML = new SignedXml(document);
signedXML.SigningKey = privateKey;
signedXML.SignedInfo.CanonicalizationMethod = SignedXml.XmlDsigC14NWithCommentsTransformUrl;
signedXML.SignedInfo.SignatureMethod = SignedXml.XmlDsigRSASHA1Url;
Reference reference = new Reference();
reference.Uri = "";
reference.AddTransform(new XmlDsigEnvelopedSignatureTransform());
signedXML.SignedInfo.AddReference(reference);
KeyInfo keyInfo = new KeyInfo();
keyInfo.AddClause(new KeyInfoX509Data(x509Certificate2));
keyInfo.AddClause(new RSAKeyValue(privateKey));
signedXML.KeyInfo = keyInfo;
signedXML.ComputeSignature();
XmlElement xmlDigitalSignature = signedXML.GetXml();
document.DocumentElement.AppendChild(document.ImportNode(xmlDigitalSignature, true));
return document.OuterXml;
}
}
This function sends a signed document to the bank for execution. In the event of errors, they are returned.
Prior to sending a document, it must be signed in accordance with the XMLDSig standard (XML Digital Signature), the “Envelope” method. Only a payment order section included in the XML tags <RBdocument> and XAdES is signed.
Enquiry Parameters
Sample code:
curl -d "function=PostSignedDocument&ticket=JGFIGDMG5965SF44557548958345975934&language=RU&refNo=HVEE07099900001&doc=<XML content>" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "PostSignedDocument",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"language" => "RU",
"refNo" => "HVEE07099900001",
"doc" => "<XML content>"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "PostSignedDocument"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("language", "RU"));
params.add(new BasicNameValuePair("refNo", "HVEE07099900001"));
params.add(new BasicNameValuePair("doc", "<XML content>"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "PostSignedDocument",
ticket => "JGFIGDMG5965SF44557548958345975934",
language => "RU",
refNo => "HVEE07099900001",
doc => "<XML content>"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "PostSignedDocument" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "language", "RU" },
{ "refNo", "HVEE07099900001" },
{ "doc", "<XML content>" }
}
);
Example of Signed XML Document
<RBdocument type="payment">
<DocNo>1-3</DocNo>
<SendCopyeMail/>
<SendCopyiRietumu>N</SendCopyiRietumu>
<User>000000</User>
<System>ELinkPRO</System>
<AddInfo72>additional info</AddInfo72>
<AmkCode>0</AmkCode>
<Amount>100.00</Amount>
<BenBank>
<BenBankAcc>A111111</BenBankAcc>
<BenBankAddr1>AXION SWISS BANK SA</BenBankAddr1>
<BenBankAddr2>LUGANO</BenBankAddr2>
<BenBankAddr3>1, VIA BOSSI</BenBankAddr3>
<BenBankBic>UNCECH22XXX</BenBankBic>
<BenBankCountry>CH</BenBankCountry>
<BenBankEl/>
<BenBankElType/>
</BenBank>
<Beneficiary>
<BenAcc>CH0000000000000000000</BenAcc>
<BenAddr1>TEST COMPANY LIMITED</BenAddr1>
Инструкция по настройке Enterprise Link PRO
23
<BenAddr2>address line 1</BenAddr2>
<BenAddr3>address line 2</BenAddr3>
<BenCountry>CH</BenCountry>
<BenID>1234567</BenID>
</Beneficiary>
<Ccy>EUR</Ccy>
<Charge>OUR</Charge>
<Details70>payment details</Details70>
<Intermediary>
<IntBankAcc/>
<IntBankAddr1>ASIA PACIFIC FINANCIAL SERVICES CHI</IntBankAddr1>
<IntBankAddr2>NA LIMITED</IntBankAddr2>
<IntBankAddr3>LANZHOU GANSU</IntBankAddr3>
<IntBankBic>APFVCNB1XXX</IntBankBic>
<IntBankCountry>CN</IntBankCountry>
<IntBankEl/>
<IntBankElType/>
</Intermediary>
<Rate>0.0</Rate>
<Sender>
<SenderAcc>LV10RTMB0000000000000</SenderAcc>
<SenderCountry/>
</Sender>
<Urgency>1</Urgency>
<RegistrationDateTime>2014-07-07T10:42:26</RegistrationDateTime>
<RefNo>HVEE07099900001</RefNo>
<SignerSID>jcs_WhEny0eiG1s1FppetEw</SignerSID>
<Signature xmlns="http://www.w3.org/2000/09/xmldsig#">
<SignedInfo>
<CanonicalizationMethod Algorithm="http://www.w3.org/TR/2001/REC-xml-c14n-20010315#WithComments"/>
<SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>
<Reference URI="">
<Transforms>
<Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>
</Transforms>
<DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>
<DigestValue>Z/G0FYqtbpB6Wof2CQkuIoDOAVs=</DigestValue>
</Reference>
</SignedInfo>
<SignatureValue>gJg8hHotw6fvuaPErg68rTH/OVnVYmohrfsYfwIW0vVhCLmDuTowEmgdnJWYzcKn2lttReQoV8cJ
KX8uvTgrasmrHYZ3zuq9BH70yh0P7fZjb4gZRv0ptxtWFBgBuF4gkp7u4f5SYG4mckiN6+pBic4H
asvbrfvTrXJSmy3/oBE=</SignatureValue>
<KeyInfo>
<KeyValue>
<RSAKeyValue>
<Modulus>tPr8PUX9Cf5o2j25o1g1Tb/W6MiCDED9C0LlP9k/hK9uJkUL3fbMEfMDjtRa83+AfnYHMTG81tNp
h9+aLOeKNobDKG3KCYxEXqvfGva0a9OBLi8lULzVdqit+hBfCEpwKCSZNshu2AXA7KFw58CWTzth
+2A8f7z5GcgdTgxJu1E=</Modulus>
<Exponent>Aw==</Exponent>
</RSAKeyValue>
</KeyValue>
<X509Data>
<X509Certificate>MIICcDCCAdmgAwIBAgIGAUTPAVTCMA0GCSqGSIb3DQEBBQUAMG8xCzAJBgNVBAYTAkxWMRYwFAYD
VQQKEw1SaWV0dW11IEJhbmthMR4wHAYDVQQLExVDZXJ0aWZpY2F0ZSBBdXRob3JpdHkxKDAmBgNV
BAMTHyh0ZXN0KSBSQiBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkwHhcNMTQwMzE3MDc0NjE0WhcNMTYw
MzA2MDc0NjE0WjBDMQ8wDQYDVQQDDAY0MjM2NzMxIzAhBgNVBAsMGkRpZ2l0YWwgSWRlbnRpZmll
ciBDbGFzcyAyMQswCQYDVQQGEwJMVjCBnTANBgkqhkiG9w0BAQEFAAOBiwAwgYcCgYEAtPr8PUX9
Cf5o2j25o1g1Tb/W6MiCDED9C0LlP9k/hK9uJkUL3fbMEfMDjtRa83+AfnYHMTG81tNph9+aLOeK
NobDKG3KCYxEXqvfGva0a9OBLi8lULzVdqit+hBfCEpwKCSZNshu2AXA7KFw58CWTzth+2A8f7z5
GcgdTgxJu1ECAQOjRTBDMAsGA1UdDwQEAwIB/jA0BgNVHSUBAf8EKjAoBggrBgEFBQcDAQYIKwYB
BQUHAwIGCCsGAQUFBwMJBggrBgEFBQcDBDANBgkqhkiG9w0BAQUFAAOBgQADBNN0K6wYm9G09yII
cPl8APAkbGPTm3eCUy50kkD9DnNwJilGY5Pdm1aqKQZ5GmbP+P4k6d6XKjB9TJSiBxzRLBurULes
LPaVxqWDp54gT7FFRr8Gz0CiaKdTr2xrzO+sCaMs3PzZ48WPrBZeYSedwPr7Gu3JjzxCD3dTq/BM
Ng==</X509Certificate>
</X509Data>
</KeyInfo>
</Signature>
</RBdocument>
Successful JSON response:
{
"code": 0,
"error": "",
"refNo": " HVEE07099900003",
"error_code": "IERR_OK",
"error_message": "",
"error_field": "",
"error_level": 0
}
Successful JSON response with errors:
{
"code": 0,
"error": "",
"refNo": " HVEE07099900004",
"error_code": "IERR_SIG_BAD",
"error_message": "Invalid signature",
"execute_message": "",
"error_field": "",
"error_level": 4,
"errors": [
{
"error_code": "IERR_SIG_BAD",
"error_message": "Invalid signature",
"execute_message": "",
"error_field": "",
"error_level": 4
}
]
}
| Parameter | Description |
|---|---|
| function* | PostSignedDocument |
| ticket* | Electronic pass provided during account login for the service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| language | Language used for notifying about errors. Possible options: RU, EN, LV |
| refNo* | Reference number of the document |
| doc* | Text of a signed document in XML format |
* compulsory parameters
ISO 20022
JSC “Rietumu Banka” supports work with ISO 20022 standard XML documents through Enterprise Link Pro system.
Following functions are used to work with ISO 20022 standard XML documents:
- PostISO20022
- ISO20022Status
- GetISO20022ForSign
Function „Payment Initiation”
Function PostISO20022 is used to send ISO 20022 XML pain.001.001.03 format payment initiation message from the client to the bank.
Prior to sending a document, it must be signed in accordance with the XMLDSig standard (XML Digital Signature), the “Enveloped” method. Only a payment order section included in the XML tags and XAdES is signed.
Enquiry Parameters
Sample code:
curl -d "function=PostISO20022&rid=123456&ticket=JGFIGDMG5965SF44557548958345975934&resultFormat=XML&doc=<XML content>" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "PostISO20022",
"rid" => "123456",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"resultFormat" => "XML",
"doc" => "<XML content>"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "PostISO20022"));
params.add(new BasicNameValuePair("rid", "123456"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("resultFormat", "XML"));
params.add(new BasicNameValuePair("doc", "<XML content>"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "PostISO20022",
rid => "123456",
ticket => "JGFIGDMG5965SF44557548958345975934",
resultFormat => "XML",
doc => "<XML content>"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "PostISO20022" },
{ "rid", "123456" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "resultFormat", "XML" },
{ "doc", "<XML content>" }
}
);
Example:
<Document>
<CstmrPmtStsRpt>
<GrpHdr>
<MsgId>1459416333517</MsgId>
<CreDtTm>2016-01-31T12:25:33</CreDtTm>
<InitgPty>
<Id>
<OrgId>
<BICOrBEI>RTMBLV2X</BICOrBEI>
</OrgId>
</Id>
</InitgPty>
</GrpHdr>
<OrgnlGrpInfAndSts>
<OrgnlMsgId>000000UniqMessageId-000012345678989</OrgnlMsgId>
<OrgnlMsgNmId>pain.001.001.03</OrgnlMsgNmId>
<OrgnlCreDtTm>2016-03-22T10:03:35</OrgnlCreDtTm>
<GrpSts>ACSP</GrpSts>
<StsRsnInf>
<Rsn>
<Cd>NARR</Cd>
</Rsn>
<AddtlInf>Accepted for execution. RefNo : XIEG01319900188</AddtlInf>
</StsRsnInf>
</OrgnlGrpInfAndSts>
</CstmrPmtStsRpt>
</Document>
| Parameter | Description |
|---|---|
| function* | PostISO20022 |
| rid* | Rietumu ID |
| ticket* | Electronic pass provided when the account is connected to Enterprise Link Pro service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| resultFormat* | XML |
| doc* | Text of a signed document in XML format. Document must be signed in accordance with the XMLDSig standard (XML Digital Signature), the “Enveloped” method. |
* compulsory parameters
Result of payment batch processing is returned in a payment status response message in ISO 20022 XML pain.002.001.03 format.
Function „Payment Status”
Function ISO20022Status is used to get the payment status in ISO 20022 XML pain.002.001.03 format from the bank.
Enquiry Parameters
Sample code:
curl -d "function=ISO20022Status&rid=123456&ticket=JGFIGDMG5965SF44557548958345975934&resultFormat=XML&msgId=1234566333517" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "ISO20022Status",
"rid" => "123456",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"resultFormat" => "XML",
"msgId" => "1234566333517"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "ISO20022Status"));
params.add(new BasicNameValuePair("rid", "123456"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("resultFormat", "XML"));
params.add(new BasicNameValuePair("msgId", "1234566333517"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "ISO20022Status",
rid => "123456",
ticket => "JGFIGDMG5965SF44557548958345975934",
resultFormat => "XML",
msgId => "1234566333517"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "ISO20022Status" },
{ "rid", "123456" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "resultFormat", "XML" },
{ "msgId", "1234566333517" }
}
);
| Parameter | Description |
|---|---|
| function* | ISO20022Status |
| rid* | Rietumu ID |
| ticket* | Electronic pass provided when the account is connected to Enterprise Link Pro service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| resultFormat* | XML |
| msgId* | The payment order file identifier from the original payment initiation message (pain.001.001.03). |
* compulsory parameters
Function „Receive a Document for Signature”
Function GetISO20022ForSign is used to get the document for signature in case multi-level signing scheme is used.
Enquiry Parameters
Sample code:
curl -d "function=GetISO20022ForSign&rid=123456&ticket=JGFIGDMG5965SF44557548958345975934&resultFormat=XML&msgId=1234566333517" -E ./cert.pem:qwerty https://<domain>/elinkpro/Process
<?php
$response = process_enterprise_link_pro( array(
"function" => "GetISO20022ForSign",
"rid" => "123456",
"ticket" => "JGFIGDMG5965SF44557548958345975934",
"resultFormat" => "XML",
"msgId" => "1234566333517"
), "./cert.pem", "qwerty" );
?>
EnterpriseLinkPro enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
List<NameValuePair> params = new ArrayList<NameValuePair>();
params.add(new BasicNameValuePair("function", "GetISO20022ForSign"));
params.add(new BasicNameValuePair("rid", "123456"));
params.add(new BasicNameValuePair("ticket", "JGFIGDMG5965SF44557548958345975934"));
params.add(new BasicNameValuePair("resultFormat", "XML"));
params.add(new BasicNameValuePair("msgId", "1234566333517"));
String result = enterpriseLinkPro.process(params);
$response = process_enterprise_link_pro( [
function => "GetISO20022ForSign",
rid => "123456",
ticket => "JGFIGDMG5965SF44557548958345975934",
resultFormat => "XML",
msgId => "1234566333517"
], './cert.pem', 'qwerty' );
var enterpriseLinkPro = new EnterpriseLinkPro("./cert.p12", "qwerty");
var result = await enterpriseLinkPro.Process(new Dictionary<string, string>
{
{ "function", "GetISO20022ForSign" },
{ "rid", "123456" },
{ "ticket", "JGFIGDMG5965SF44557548958345975934" },
{ "resultFormat", "XML" },
{ "msgId", "1234566333517" }
}
);
| Parameter | Description |
|---|---|
| function* | GetISO20022ForSign |
| rid* | Rietumu ID |
| ticket* | Electronic pass provided when the account is connected to Enterprise Link Pro service at iRietumu, for example ticket=JGFIGDMG5965SF44557548958345975934 |
| resultFormat* | XML |
| msgId* | The payment order file identifier from the original payment initiation message (pain.001.001.03). |
* compulsory parameters
ISO 20022 XML Documents
Payment Initiation Message pain.001.001.03
General Requirements
Given documentation must be used with ISO 20022 Message Definition Report format description, since given documentation contains only data about those elements of the messages that are used in the bank. If message contains elements not described in this documentation, then those elements will be ignored.
Encoding
JSC “Rietumu Banka” supports “UTF-8 without BOM” encoding.
Payment Initiation Message Content Description
The report contains two mandatory blocks: Header and Payment Information.
Header: This block is indicated only once and contains file identification elements - payment identifier, message creation date and time, payment initiating party (representative).
Payment Information: File may contain one or more payment blocks. Each such block contains elements by which the payer (debtor) can be identified - debtor, debtor’s account. Also these blocks have information about Credit Transfer, which contain information about beneficiary, beneficiary’s bank, transfer amount and payment information.
The table describes message fields in the following format:
| ISO Index No. | Or. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|---|
| [1..1] | + Message root |
ISO Index No. – Message element number. Number corresponds to ISO 20022 XML standard description, which may be found at www.iso20022.org under “Catalogue of ISO 20022 messages” with a reference to “pain.001.001.03”.
Or. – Indicates a choice possibility. One or the other element may be included in the message.
Mult. – Indicates if the element is mandatory and it’s occurrence. Possible values and their meanings:
- [1..1] – The element is mandatory and can be specified once;
- [1..n] – The element is mandatory and can be specified one or more times;
- [0..1] – The element may be omitted. If the element is specified, it can be done only once;
- [0..n] – The element may be omitted. If the element is specified, it can be done one or more times.
Message element – Element name in accordance with ISO 20022 XML.
XML tag – XML tag of the corresponding element in the message.
ISO Type – XML tag content description.
Comment about data in the field – Additional comment about data in the field.
Message Elements
| ISO Index No. | Or. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|---|
| Customer Credit Transfer Initiation | <CstmrCdtTrfInitn> | |||||
| 1.0 | [1..1] | +GroupHeader | <GrpHdr> | Component | ||
| 1.1 | [1..1] | ++MessageIdentification | <MsgId> | Max35Text | Unique message identifier assigned by the creator. 6 first characters must coincide with Rietumu ID. | |
| 1.2 | [1..1] | ++CreationDateTime | <CreDtTm> | ISODateTime | (YYYY-MM-DDThh:mm:ss, for example: 2015-11-21T09:15:39) | |
| 1.6 | [1..1] | ++NumberOfTransactions | <NbOfTxs> | Max15NumericText | Total number of payments in the file. | |
| 1.7 | [0..1] | ++ControlSum | <CtrlSum> | Decimal Number | Total amount of payments (regardless of currency). For example, 100EUR; 60USD; 50GBP - field value: 210. | |
| 1.8 + | [1..1] | ++Initiating Party | <InitgPty> | Party Identification Component | Information on payment initiator - client’s representative. It is accepted but not used. | |
| 9.1.0 | [0..1] | +++Name | <Nm> | Max140Text | ||
| 9.1.12 | [0..1] | +++Identification | <Id> | Component | ||
| 9.1.13 | {Or | [1..1] | ++++OrganisationIdentification | <OrgId> | Component | Organization identifier. |
| 9.1.14 | [0..1] | +++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | ++++++Identification | <Id> | Max35Text | ||
| 9.1.17 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | [1..1] | +++++++Code | <Cd> | Code | If taxpayer identification number is being indicated - TXID. | |
| 9.1.21 | Or} | [1..1] | ++++PrivateIdentification | <PrvtId> | Component | Private person identifier. |
| 9.1.27 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | ++++++Identification | <Id> | Max35Text | Private person’s code. | |
| 9.1.29 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.30 | [1..1] | +++++++Code | <Cd> | Code | If person’s code is set - NIDN. | |
| 2.0 | [1..n] | +PaymentInformation | <PmtInf> | Component | Payment information block. | |
| 2.1 | [1..1] | ++PaymentInformation Identification | <PmtInfId> | Max35Text | Unique payment block identifier (assigned by payment initiator). | |
| 2.2 | [1..1] | ++PaymentMethod | <PmtMtd> | Code | Only TRF code is accepted. | |
| 2.4 | [0..1] | ++NumberOfTransactions | <NbOfTxs> | Max15NumericText | Number of payments in <PmtInf> block. | |
| 2.5 | [0..1] | ++ControlSum | <CtrlSum> | Decimal Number | Amount of payments in <PmtInf> block, regardless of currency. | |
| 2.6 | [0..1] | ++PaymentTypeInformation | <PmtTpInf> | Component | Aggregate of elements that indicate payment type/priority. | |
| 2.11 | [0..1] | +++LocalInstrument | <LclInstrm> | Choice Component | ||
| 2.12 | {Or | [1..1] | ++++Code | <Cd> | Code | Payment execution speed for all payment orders in a given block. SDCL - Express, any other value - Standard. If this information is filled at a lower level, the field is ignored. |
| 2.13 | Or} | [1..1] | ++++Proprietary | <Prtry> | Max35Text | Payment priority: NORM - Economy; HIGH - Standard; EXPR - Express. If this information is filled at a lower level (field 2.38), the field is ignored. |
| 2.17 | [1..1] | ++RequestedExecutionDate | <ReqdExctnDt> | ISODate | Date on which the payments will be sent for execution. Not more than 30 days in the future. Past dates are not accepted. | |
| 2.19 + | [1..1] | ++Debtor | <Dbtr> | Party Identification Component | Payer data. The payer is identified by the payer’s account number (field. 2.20). | |
| 9.1.0 | [0..1] | +++Name | <Nm> | Max140Text | Accepted but not used. It will be taken from Rietumu Bank database, based on the payer’s account number. | |
| 9.1.1 | [0..1] | +++PostalAddress | <PstlAdr> | Component | Accepted but not used. | |
| 9.1.10 | [0..1] | ++++Country | <Ctry> | CountryCode | Accepted but not used. | |
| 9.1.11 | [0..7] | ++++AdressLine | <AdrLine> | Max70Text | Accepted but not used. | |
| 9.1.12 | [0..1] | +++Identification | <Id> | Choice Component | Accepted but not used. | |
| 9.1.13 | {Or | [1..1] | ++++OrganisationIdentification | <OrgId> | Component | Accepted but not used. It will be taken from Rietumu Bank database, based on the payer’s account number (field. 2.20). |
| 9.1.14 | [0..1] | +++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | ++++++Identification | <Id> | Max35Text | ||
| 9.1.17 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | [1..1] | +++++++Code | <Cd> | Code | ||
| 9.1.21 | Or} | [1..1] | ++++PrivateIdentification | <PrvtId> | Component | Accepted but not used. It will be taken from Rietumu Bank database, based on the payer’s account number (field. 2.20). |
| 9.1.22 | [0..1] | +++++DateAndPlaceOfBirth | <DtAndPlcOfBirth> | Component | ||
| 9.1.23 | [1..1] | ++++++BirthDate | <BirthDt> | ISODate | ||
| 9.1.25 | [1..1] | ++++++CityOfBirth | <CityOfBirth> | Max35Text | ||
| 9.1.26 | [1..1] | ++++++CountryOfBirth | <CtryOfBirth> | CountryCode | ||
| 9.1.27 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | ++++++Identification | <Id> | Max35Text | ||
| 9.1.29 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.30 | [1..1] | +++++++Code | <Cd> | Code | ||
| 2.20 + | [1..1] | ++DebtorAccount | <DbtrAcct> | Component | Information on the payer’s account, from which the payment will be made. | |
| 1.1.0 | [1..1] | +++Identification | <Id> | Account Identification Component | Payer’s account identifier. | |
| 1.1.1 | [1..1] | ++++IBAN | <IBAN> | IBANIdentifier | Account number in IBAN format. This field identifies account, from which the payment will be made. | |
| 1.1.11 | [0..1] | +++Currency | <Ccy> | Currency Code | Accepted but not used. Payment currency will be determined after each payment CCY. | |
| 2.21 + | [1..1] | ++DebtorAgent | <DbtrAgt> | Financial Institution Identification Component | ||
| 6.1.0 | [1..1] | +++FinancialInstitutionIdentification | <FinInstnId> | Component | ||
| 6.1.1 | [0..1] | ++++BIC | <BIC> | BICIdentifier | Bank BIC code - RTMBLV2X. | |
| 2.23 + | [0..1] | ++UltimateDebtor | <UltmtDbtr> | Party Identification Component | Accepted but not used. | |
| 9.1.0 | [0..1] | +++Name | <Nm> | Max140Text | ||
| 9.1.1 | [0..1] | +++PostalAddress | <PstlAdr> | Component | ||
| 9.1.10 | [0..1] | ++++Country | <Ctry> | CountryCode | ||
| 9.1.11 | [0..7] | ++++AdressLine | <AdrLine> | Max70Text | ||
| 9.1.12 | [0..1] | +++Identification | <Id> | Choice Component | ||
| 9.1.13 | {Or | [1..1] | ++++OrganisationIdentification | <OrgId> | Component | Company identifier. |
| 9.1.14 | [0..1] | +++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | ++++++Identification | <Id> | Max35Text | ||
| 9.1.17 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | [1..1] | +++++++Code | <Cd> | Code | ||
| 9.1.21 | Or} | [1..1] | ++++PrivateIdentification | <PrvtId> | Component | |
| 9.1.22 | [0..1] | +++++DateAndPlaceOfBirth | <DtAndPlcOfBirth> | Component | ||
| 9.1.23 | [1..1] | ++++++BirthDate | <BirthDt> | ISODate | ||
| 9.1.25 | [1..1] | ++++++CityOfBirth | <CityOfBirth> | Max35Text | ||
| 9.1.26 | [1..1] | ++++++CountryOfBirth | <CtryOfBirth> | CountryCode | ||
| 9.1.27 | [0..n] | +++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | ++++++Identification | <Id> | Max35Text | ||
| 9.1.29 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.30 | [1..1] | +++++++Code | <Cd> | Code | ||
| 9.1.33 | [0..1] | +++CountryOfResidence | <CtryOfRes> | CountryCode | ||
| 2.24 | [0..1] | ++ChargeBearer | <ChrgBr> | Code | Refers to the side who pays transaction-related fees. One of the codes is allowed: DEBT - fees are paid by the payer; SHAR or SLEV - fees are paid separately; CRED - fees are paid by receiver. If the field is not filled it is considered SHAR.If this information is filled at a lower level (field 2.51), the field is ignored. | |
| 2.27 | [1..n] | ++CreditTransferTransactionInformation | <CrdtTrfTxInf> | Component | Each <CrdtTrfTxInf> block contains information about one unique payment. | |
| 2.28 | [1..1] | +++PaymentIdentification | <PmtId> | Component | Payment identification section. | |
| 2.29 | [0..1] | ++++InstructionIdentification | <InstrId> | Max35Text | Accepted but not used. | |
| 2.3 | [1..1] | ++++End-To-EndIdentification | <EndToEndId> | Max35Text | Unique payment number. It is transferred to the beneficiary’s bank if possible. | |
| 2.31 | [0..1] | +++PaymentTypeInformation | <PmtTpInf> | Component | Contains information on priority of the payment. | |
| 2.33 | [0..1] | ++++ServiceLevel | <SvcLvl> | Choice Component | Accepted but not used. | |
| 2.34 | [1..1] | +++++Code | <Cd> | Code | ||
| 2.36 | [0..1] | ++++LocalInstrument | <LclInstrm> | Choice Component | ||
| 2.38 | [1..1] | +++++Proprietary | <Prtry> | Max35Text | Payment priority: NORM - Economy; HIGH - Standard; EXPR - Express. If this information is filled at a higher level (field 2.13), the higher level field is ignored. | |
| 2.39 | [0..1] | ++++CategoryPurpose | <CtgyPurp> | Choice Component | Accepted but not used. | |
| 2.4 | [1..1] | +++++Code | <Cd> | Code | ||
| 2.42 | [1..1] | +++Amount | <Amt> | Payment amount and currency. | ||
| 2.43 | [1..1] | ++++InstructedAmount | <InstdAmt Ccy=“AAA”> | Amount | Payment amount and currency. For example, if it is necessary to transfer 1000 EUR: <InstdAmt Ccy=“EUR”>1000</InstdAmt>. Both amount and currency must be specified. | |
| 2.51 | [0..1] | +++ChargeBearer | <ChrgBr> | Code | Refers to the side who pays transaction-related fees. One of the codes is allowed: DEBT - fees are paid by the payer; SHAR or SLEV - fees are paid separately; CRED - fees are paid by receiver. If the field is not filled it is considered SHAR. If this information is filled at a higher level (field 2.24), the higher level field is ignored. | |
| 2.70 + | [0..1] | +++UltimateDebtor | <UltmtDbtr> | Identification | Accepted but not used. | |
| 9.1.0 | [0..1] | ++++Name | <Nm> | Max140Text | ||
| 9.1.1 | [0..1] | ++++PostalAddress | <PstlAdr> | Component | ||
| 9.1.10 | [0..1] | +++++Country | <Ctry> | CountryCode | ||
| 9.1.11 | [0..7] | +++++AdressLine | <AdrLine> | Max70Text | ||
| 9.1.12 | [0..1] | ++++Identification | <Id> | Choice Component | ||
| 9.1.13 | {Or | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | |
| 9.1.14 | [0..1 | ++++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | ++++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | +++++++Identification | <Id> | Max35Text | ||
| 9.1.17 | [0..1] | +++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | [1..1] | ++++++++Code | <Cd> | Code | ||
| 9.1.21 | Or} | [1..1] | +++++PrivateIdentification | <PrvtId> | Component | |
| 9.1.22 | [0..1] | ++++++DateAndPlaceOfBirth | <DtAndPlcOfBirth> | Component | ||
| 9.1.23 | [1..1] | +++++++BirthDate | <BirthDt> | ISODate | ||
| 9.1.25 | [1..1] | ++++++CityOfBirth | <CityOfBirth> | Max35Text | ||
| 9.1.26 | [1..1] | +++++++CountryOfBirth | <CtryOfBirth> | CountryCode | ||
| 9.1.27 | [0..n] | ++++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | +++++++Identification | <Id> | Max35Text | ||
| 9.1.29 | [0..1] | +++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.30 | [1..1] | ++++++++Code | <Cd> | Code | ||
| 9.1.33 | [0..1] | ++++CountryOfResidence | <CtryOfRes> | CountryCode | ||
| 2.71 + | [0..1] | +++IntermediaryAgent1 | <IntrmyAgt1> | Financial Institution Identification Component | Correspondent bank of beneficiary bank. | |
| 6.1.0 | [1..1] | ++++FinancialInstitutionIdentification | <FinInstnId> | Component | ||
| 6.1.1 | [0..1] | +++++BIC | <BIC> | BICIdentifier | Bank Identifier Code - BIC. Specify only for SWIFT. | |
| 6.1.2 | [0..1] | +++++ClearingSystemMemberIdentification | <ClrSysMmbId> | Component | Clearing system which identifier is specified. Should be specified in case if BIC specified is not a SWIFT code. | |
| 6.1.3 | [0..1] | ++++++ClearingSystemIdentification | <ClrSysId> | Choice Component | ||
| 6.1.4 | [1..1] | +++++++Code | <Cd> | Code | Clearing system identifiers are available at http://www.iso20022.org/external_code_list.page in list ExternalClearingSystemIdentification1Code. Should be specified in case if BIC specified is not a SWIFT code. | |
| 6.1.6 | [1..1] | ++++++MemberIdentification | <MmbId> | Max35Text | Correspondent bank identifier within the clearing system. Should be specified in case if BIC specified is not a SWIFT code. | |
| 6.1.7 | [0..1] | +++++Name | <Nm> | Max140Text | Correspondent bank name. | |
| 6.1.8 | [0..1] | +++++PostalAddress | <PstlAdr> | Component | Correspondent bank address. | |
| 6.1.17 | [0..1] | ++++++Country | <Ctry> | CountryCode | ||
| 6.1.18 | [0..7] | ++++++AdressLine | <AdrLine> | Max70Text | First 140 characters are being used, including the bank name. | |
| 6.1.25 | [0..1] | ++++BranchIdentification | <BrnchId> | Component | Accepted but not used. | |
| 6.1.26 | [0..1] | +++++Identification | <Id> | Max35Text | ||
| 6.1.27 | [0..1] | +++++Name | <Nm> | Max140Text | ||
| 6.1.28 | [0..1] | +++++PostalAddress | <PstlAdr> | Component | ||
| 6.1.37 | [0..1] | ++++++Country | <Ctry> | CountryCode | ||
| 6.1.38 | [0..7] | ++++++AdressLine | <AdrLine> | Max70Text | ||
| 2.72 + | [0..1] | +++IntermediaryAgentAccount1 | <IntrmyAgt1Acct> | Cash Account Component | Account number in correspondent bank of beneficiary bank. | |
| 1.1.0 | [1..1] | ++++Identification | <Id> | Identification | ||
| 1.1.1 | {Or | [1..1] | +++++IBAN | <IBAN> | IBANIdentifier | Account number only in IBAN format. |
| 1.1.2 | Or} | [1..1] | +++++Other | <Othr> | Component | |
| 1.1.3 | [1..1] | ++++++Identification | <Id> | Max34Text | ||
| 1.1.4 | [0..1] | ++++++SchemeName | <SchmeNm> | Choice Component | ||
| 1.1.5 | [1..1] | +++++++Code | <Cd> | Code | ||
| 2.73 + | [0..1] | +++IntermediaryAgent2 | <IntrmyAgt2> | Financial Institution Identification Component | Accepted but not used. | |
| 2.74 + | [0..1] | +++IntermediaryAgentAccount2 | <IntrmyAgt2Acct> | Cash Account Component | Accepted but not used. | |
| 2.77 + | [0..1] | +++CreditorAgent | <CdtrAgt> | Financial Institution Identification Component | Beneficiary bank. | |
| 6.1.0 | [1..1] | ++++FinancialInstitutionIdentification | <FinInstnId> | Component | ||
| 6.1.1 | [0..1] | +++++BIC | <BIC> | BICIdentifier | Bank Identifier Code - BIC. Specify only for SWIFT. | |
| 6.1.2 | [0..1] | +++++ClearingSystemMemberIdentification | <ClrSysMmbId> | Component | Clearing system which identifier is specified. Should be specified in case if BIC specified is not a SWIFT code. | |
| 6.1.3 | [0..1] | ++++++ClearingSystemIdentification | <ClrSysId> | Choice Component | ||
| 6.1.4 | [1..1] | +++++++Code | <Cd> | Code | Clearing system identifiers are available at http://www.iso20022.org/external_code_list.page in list ExternalClearingSystemIdentification1Code. Should be specified in case if BIC specified is not a SWIFT code. | |
| 6.1.6 | [1..1] | ++++++MemberIdentification | <MmbId> | Max35Text | Beneficiary bank identifier within the clearing system. | |
| 6.1.7 | [0..1] | +++++Name | <Nm> | Max140Text | Beneficiary bank name. | |
| 6.1.8 | [0..1] | +++++PostalAddress | <PstlAdr> | Component | Beneficiary bank mail address. | |
| 6.1.17 | [0..1] | ++++++Country | <Ctry> | CountryCode | Country code. | |
| 6.1.18 | [0..7] | ++++++AdressLine | <AdrLine> | Max70Text | First 140 characters are being used, including the bank name. | |
| 2.78 + | [0..1] | +++CreditorAgentAccount | <CdtrAgtAcct> | Cash Account Component | Beneficiary bank account number in correspondent bank. | |
| 1.1.0 | [1..1] | ++++Identification | <Id> | Account Identification Component | ||
| 1.1.1 | {Or | [1..1] | +++++IBAN | <IBAN> | IBANIdentifier | Account number only in IBAN format. |
| 1.1.2 | Or} | [1..1] | +++++Other | <Othr> | Component | If account number is not in IBAN format. |
| 1.1.3 | [1..1] | ++++++Identification | <Id> | Max34Text | ||
| 2.79 + | [0..1] | +++Creditor | <Cdtr> | Party Identification Component | Information about beneficiary (creditor) of the payment. | |
| 9.1.0 | [0..1] | ++++Name | <Nm> | Max140Text | Name/name surname of receiver. In case of SEPA payment field length is limited to 70 characters. | |
| 9.1.1 | [0..1] | ++++PostalAddress | <PstlAdr> | Component | Beneficiary address. | |
| 9.1.10 | [0..1] | +++++Country | <Ctry> | CountryCode | ||
| 9.1.11 | [0..7] | +++++AdressLine | <AdrLine> | Max70Text | It is used in the first 140 characters, along with the receiver’s name. | |
| 9.1.12 | [0..1] | ++++Identification | <Id> | Choice Component | ||
| 9.1.13 | {Or | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | Company identifier. |
| 9.1.14 | [0..1] | ++++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | +++++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | ++++++++Identification | <Id> | Max35Text | Company registration number or tax payer number. | |
| 9.1.17 | [0..1] | ++++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | {Or | [1..1] | +++++++++Code | <Cd> | Code | If taxpayer identification number is being indicated - TXID. |
| 9.1.19 | Or} | [1..1] | +++++++++Proprietary | <Prtry> | Max35Text | |
| 9.1.20 | [0..1] | ++++++++Issuer | <Issr> | Max35Text | ||
| 9.1.21 | Or} | [1..1] | ++++++PrivateIdentification | <PrvtId> | Component | Private person identifier. |
| 9.1.22 | [0..1] | +++++++DateAndPlaceOfBirth | <DtAndPlcOfBirth> | Component | ||
| 9.1.23 | [1..1] | ++++++++BirthDate | <BirthDt> | ISODate | ||
| 9.1.25 | [1..1] | ++++++++CityOfBirth | <CityOfBirth> | Max35Text | ||
| 9.1.26 | [1..1] | ++++++++CountryOfBirth | <CtryOfBirth> | CountryCode | Country code. | |
| 9.1.27 | [0..n] | ++++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | +++++++Identification | <Id> | Max35Text | If person’s code is set - NIDN. | |
| 9.1.29 | [0..1] | +++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.30 | {Or | [1..1] | ++++++++Code | <Cd> | Code | |
| 9.1.31 | Or} | [1..1] | ++++++++Proprietary | <Prtry> | Max35Text | |
| 9.1.32 | [0..1] | +++++++Issuer | <Issr> | Max35Text | ||
| 9.1.33 | [0..1] | ++++CountryOfResidence | <CtryOfRes> | CountryCode | Country code. | |
| 2.80 + | [0..1] | +++CreditorAccount | <CdtrAcct> | Cash Account Component | Information about receiver’s account number (account to be credited). REQUIRED FIELD | |
| 1.1.0 | [1..1] | ++++Identification | <Id> | Account Identification Component | ||
| 1.1.1 | {Or | [1..1] | +++++IBAN | <IBAN> | IBANIdentifier | Account to be credited in IBAN format. Mandatory for Latvian and SEPA payments. |
| 1.1.2 | Or} | [1..1] | +++++Other | <Othr> | Component | |
| 1.1.3 | [1..1] | ++++++Identification | <Id> | Max34Text | Receiver’s account in non-IBAN format. | |
| 2.81 + | [0..1] | +++UltimateCreditor | <UltmCdtr> | Party Identification Component | Accepted but not used. | |
| 9.1.0 | [0..1] | ++++Name | <Nm> | Max140Text | ||
| 9.1.12 | [0..1] | ++++Identification | <Id> | Choice Component | ||
| 9.1.13 | {Or | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | Company identifier. |
| 9.1.14 | [0..1] | ++++++BICOrBEI | <BICOrBEI> | Identifier | ||
| 9.1.15 | [0..n] | +++++++Other | <Othr> | Component | ||
| 9.1.16 | [1..1] | ++++++++Identification | <Id> | Max35Text | ||
| 9.1.17 | [0..1] | ++++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.18 | [1..1] | +++++++++Code | <Cd> | Code | ||
| 9.1.21 | Or} | [1..1] | ++++++PrivateIdentification | <PrvtId> | Component | Private person identifier. |
| 9.1.22 | [0..1] | +++++++DateAndPlaceOfBirth | <DtAndPlcOfBirth> | Component | ||
| 9.1.23 | [1..1] | ++++++++BirthDate | <BirthDt> | ISODate | ||
| 9.1.25 | [1..1] | +++++++CityOfBirth | <CityOfBirth> | Max35Text | ||
| 9.1.26 | [1..1] | ++++++++CountryOfBirth | <CtryOfBirth> | CountryCode | ||
| 9.1.27 | [0..n] | ++++++Other | <Othr> | Component | ||
| 9.1.28 | [1..1] | +++++++Identification | <Id> | Max35Text | ||
| 9.1.29 | [0..1] | +++++++SchemeName | <SchmeNm> | Choice Component | ||
| 9.1.33 | [0..1] | ++++CountryOfResidence | <CtryOfRes> | CountryCode | ||
| 2.86 | [0..1] | +++Purpose | <Purp> | Choice Component | ||
| 2.87 | [1..1] | ++++Code | <Cd> | ExternalPurposeCode | ||
| 2.89 | [0..10] | +++RegulatoryReporting | <RgltryRptg> | Component | Is used for AMK code input, for VO codes in case of Russian ruble payments. | |
| 11.1.1 | [0..1] | ++++Authority | <Authrty> | Component | ||
| 11.1.3 | [0..1] | +++++Country | <Ctry> | CountryCode | Country code (LV in case of AMK, RU in case of Russian rubles). | |
| 11.1.4 | [0..n] | ++++Details | <Dtls> | Component | ||
| 11.1.5 | [0..1] | +++++Type | <Tp> | Max35Text | AMK - external payment classification code in case of Latvia. VO - currency operation code in case of Russia. | |
| 11.1.7 | [0..1] | +++++Country | <Ctry> | CountryCode | ||
| 11.1.8 | [0..1] | +++++Code | <Cd> | Code | Precise information/reference code. AMK - 3 characters, VO - 5 characters. | |
| 11.1.10 | [0..1] | +++++Information | <Inf> | Max35Text | ||
| 2.98 | [0..1] | +++RemittanceInformation | <RmtInf> | Component | Payment details/purpose. | |
| 2.99 | {Or | [0..1] | ++++Unstructured | <Ustrd> | Max140Text | Information about receiver (Payment details/purpose) in free form, max 140 characters allowed. Cannot be simultaneously filled with structured information element (field 2.100). Element can only be used one time in each payment. |
| 2.1 | Or} | [0..1] | ++++Structured | <Strd> | Component | Structured information for beneficiary (Payment details/purpose). Cannot be simultaneously filled with unstructured information element (field 2.99). Element can only be used one time in each payment. Total length cannot exceed 140 characters. |
| 2.12 | [0..1] | +++++CreditorReferenceInformation | <CdtrRefInf> | Component | ||
| 2.121 | [0..1] | ++++++Type | <Tp> | Component | Creditor reference type. | |
| 2.122 | [1..1] | +++++++CodeOrProprietary | <CdOrPrtry> | Component | ||
| 2.123 | [1..1] | ++++++++Code | <Cd> | Code | ||
| 2.125 | [0..1] | ++++++++Issuer | <Issuer> | Max35Text | Payment reference issuer. | |
| 2.126 | [0..1] | ++++++Reference | <Ref> | Max35Text | Payment reference number. |
Specific Information Input
AMK Code Indication
XML sample:
<RgltryRptg>
<Authrty>
<Ctry>LV</Ctry>
</Authrty>
<Dtls>
<Tp>AMK</Tp>
<Cd>111</Cd>
</Dtls>
</RgltryRptg>
In order to indicate AMK code, the section „RegulatoryReporting” (field 2.89) must be filled with the following information:
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.89 | [0..10] | +++RegulatoryReporting | <RgltryRptg> | Component | |
| 11.1.1 | [0..1] | ++++Authority | <Authrty> | Component | |
| 11.1.3 | [0..1] | +++++Country | <Ctry> | CountryCode | Country code - LV. |
| 11.1.4 | [0..n] | ++++Details | <Dtls> | Component | |
| 11.1.5 | [0..1] | +++++Type | <Tp> | Max35Text | Code type - AMK. |
| 11.1.8 | [0..1] | +++++Code | <Cd> | Code | Example of transaction code: 111 - export import of goods |
Ruble Payments to Russia
To specify correct payment execution following information must be filled:
Receiver’s Bank Code – BIK
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.77 + | [0..1] | +++CreditorAgent | <CdtrAgt> | Financial Institution Identification Component | Beneficiary bank. |
| 6.1.0 | [1..1] | ++++FinancialInstitutionIdentification | <FinInstnId> | Component | Financial institutions identification section. |
| 6.1.2 | [0..1] | +++++ClearingSystemMemberIdentification | <ClrSysMmbId> | Component | |
| 6.1.3 | [0..1] | ++++++ClearingSystemIdentification | <ClrSysId> | Choice Component | Clearing system identifier. |
| 6.1.4 | [1..1] | +++++++Code | <Cd> | Code | Constant code - RUCBC. |
| 6.1.6 | [1..1] | ++++++MemberIdentification | <MmbId> | Max35Text | BIK value of beneficiary bank. |
*This section also indicates the receiver’s bank name and address.
Correspondent Account of Receiver’s Bank
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.78 + | [0..1] | +++CreditorAgentAccount | <CdtrAgtAcct> | Cash Account Component | Beneficiary bank account number in correspondent bank. |
| 1.1.0 | [1..1] | ++++Identification | <Id> | ||
| 1.1.2 | [1..1] | +++++Other | <Othr> | ||
| 1.1.3 | [1..1] | ++++++Identification | <Id> | Receiver bank’s correspondent account (account number). |
Receiver’s INN Code
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.79 + | [0..1] | +++Creditor | <Cdtr> | Party Identification Component | |
| 9.1.12 | [0..1] | ++++Identification | <Id> | Choice Component | |
| 9.1.13 | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | Company identifier. |
| 9.1.15 | [0..n] | +++++++Other | <Othr> | Component | |
| 9.1.16 | [1..1] | ++++++++Identification | <Id> | Max35Text | INN code (for example INN1234567890). |
| 9.1.17 | [0..1] | ++++++++SchemeName | <SchmeNm> | Choice Component | |
| 9.1.19 | [1..1] | +++++++++Proprietary | <Prtry> | Max35Text | Code type, constant INN. |
Receiver’s KPP Code
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.79 + | [0..1] | +++Creditor | <Cdtr> | Party Identification Component | |
| 9.1.12 | [0..1] | ++++Identification | <Id> | Choice Component | |
| 9.1.13 | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | Company identifier. |
| 9.1.15 | [0..n] | +++++++Other | <Othr> | Component | |
| 9.1.16 | [1..1] | ++++++++Identification | <Id> | Max35Text | KPP code (for example KPP987654321). |
| 9.1.17 | [0..1] | ++++++++SchemeName | <SchmeNm> | Choice Component | |
| 9.1.19 | [1..1] | +++++++++Proprietary | <Prtry> | Max35Text | Code type, constant KPP. |
Currency Operation Code (Code VO)
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 2.89 | [0..10] | +++RegulatoryReporting | <RgltryRptg> | Component | |
| 11.1.1 | [0..1] | ++++Authority | <Authrty> | Component | Refers to information receiver (for example state institute that requested additional information about transaction). |
| 11.1.3 | [0..1] | +++++Country | <Ctry> | CountryCode | Country code - RU. |
| 11.1.4 | [0..n] | ++++Details | <Dtls> | Component | Accurate information on the regulatory requirements for the data. |
| 11.1.5 | [0..1] | +++++Type | <Tp> | Max35Text | Code type - VO. VO - currency operation code in case of Russia. |
| 11.1.10 | [0..1] | +++++Code | <Inf> | Max35Text | Currency operation code (5 digits). |
Payment Status pain.002.001.03
Payment Status Content Description
The report contains two mandatory blocks: Header and information about original payment order batch.
Header: This block is indicated only once and contains file identification elements - payment identifier, message creation date and time, payment initiating party (representative).
Information about the original payment order: file from the client can contain one (or more) payment blocks, and client receives corresponding structure for status report.
The table describes message fields in the following format:
| ISO Index No. | Or. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|---|
| [1..1] | + Message root |
ISO Index No. – Message element number. Number corresponds to ISO 20022 XML standard description, which may be found at www.iso20022.org under “Catalogue of ISO 20022 messages” with a reference to “pain.001.001.03”.
Or. – Indicates a choice possibility. One or the other element may be included in the message.
Mult. – Indicates if the element is mandatory and it’s occurrence. Possible values and their meanings:
- [1..1] – The element is mandatory and can be specified once;
- [1..n] – The element is mandatory and can be specified one or more times;
- [0..1] – The element may be omitted. If the element is specified, it can be done only once;
- [0..n] – The element may be omitted. If the element is specified, it can be done one or more times.
Message element – Element name in accordance with ISO 20022 XML.
XML tag – XML tag of the corresponding element in the message.
ISO Type – XML tag content description.
Comment about data in the field – Additional comment about data in the field.
Message Elements
| ISO Index No. | Mult. | Message element | <XML tag> | ISO Type | Comment about data in the field |
|---|---|---|---|---|---|
| 0.0 | [1..1] | CustomerPaymentStatusReport | <CstmrPmtStsRpt> | ||
| 1.0 | [1..1] | +GroupHeader | <GrpHdr> | Component | Message information. |
| 1.1 | [1..1] | ++MessageIdentification | <MsgId> | Max35Text | Unique message identifier assigned by the creator. |
| 1.2 | [1..1] | ++CreationDateTime | <CreDtTm> | ISODateTime | Creation date and time (YYYY-MMDDThh:mm:ss, for example: 2012-11-21T09:10:49). |
| 1.3 | [1..1] | ++InitiatingParty | <InitgPty> | Component | Financial institution which holds the debit account (the bank, which will execute the payment). |
| 9.1.12 | [1..1] | +++Identification | <Id> | Component | |
| 9.1.13 | [1..1] | ++++OrganisationIdentification | <OrgId> | Component | |
| 9.1.14 | [1..1] | +++++BICOrBEI | <BICOrBEI> | Identifier | Bank BIC code. |
| 2 | [1..1] | +OriginalGroupInformationAndStatus | <OrgnlGrpInfAndSts> | Component | Information about the payment initiation message. |
| 2.1 | [1..1] | ++OriginalMessageIdentification | <OrgnlMsgId> | Max35Text | Payment order message identifier from pain.001.001 file. |
| 2.2 | [1..1] | ++OriginalMessageNameIdentification | <OrgnlMsgNmId> | Max35Text | Payment order message identifier scheme - pain.001.001.03. |
| 2.6 | [0..1] | ++GroupStatus | <GrpSts> | TransactionGroupStatus3Code | Status of all transactions. JSC “Rietumu Banka” uses the following codes: RJCT - if whole payment package was cancelled. PDNG - processing. PART - even if 1 payment is not yet complete. ACSC - all payments are processed. |
| 2.7 | [0..n] | ++StatusReasonInformation | <StsRsnInf> | Component | Information on transaction processing status. |
| 2.9 | [0..1] | +++Reason | <Rsn> | Component | |
| 2.10 | [1..1] | ++++Code | <Cd> | ExternalStatusReason1Code | |
| 2.12 | [0..n] | +++AdditionalInformation | <AddtlInf> | Max105Text | Textual information on the status. |
| 3.0 | [0..n] | +OriginalPaymentInformationAndStatus | <OrgnlPmtInfAndSts> | Component | Information about payment initiation packet. |
| 3.1 | [1..1] | ++OriginalPaymentInformationIdentification | <OrgnlPmtInfId> | Max35Text | The original payment batch identifier (<PmtInfId>). |
| 3.15 | [0..n] | ++TransactionInformationAndStatus | <TxInfAndSts> | Component | Information about the transaction. |
| 3.17 | [0..1] | +++OriginalInstructionIdentification | <OrgnlInstrId> | Max35Text | The original transaction identifier. |
| 3.18 | [0..1] | +++OriginalEndtoEndIdentification | <OrgnlEndToEndId> | Max35Text | The original transaction end-to-end identifier. |
| 3.19 | [0..1] | +++TransactionStatus | <TxSts> | TransactionIndividualStatus3Code | Transaction execution status. JSC “Rietumu Banka” uses the following codes: RJCT - payment cancelled. PDNG - payment is being processed. ACSC - payment complete. |
| 3.20 | [0..n] | +++StatusReasonInformation | <StsRsnInf> | Component | Information about transaction execution. |
| 3.21 | [0..1] | +++Originator | <Orgtr> | Component | |
| 9.1.12 | [0..1] | ++++Identification | <Id> | Component | |
| 9.1.13 | [1..1] | +++++OrganisationIdentification | <OrgId> | Component | |
| 9.1.14 | [1..1] | ++++++BICorBEI | <BICOrBEI> | AnyBICIdentifier | |
| 3.22 | [0..1] | ++++Reason | <Rsn> | Component | Transaction status reason code. |
| 3.23 | [1..1] | +++++Code | <Cd> | ExternalStatusReason1Code | Status codes are available at http://www.iso20022.org/External_Code_Lists_and_DSS.page External Code Lists spreadsheet. If status code is NARR, see AddtlInf of the element for more details. |
| 3.25 | [0..n] | ++++AdditionalInformation | <AddtlInf> | Max105Text | Textual information about transaction process and/or error message. |
| 3.30 | [0..1] | +++AccountServicerReference | <AcctSvcrRef> | Max35Text | Transaction reference number granted by Rietumu Bank. |
| 3.32 | [0..1] | +++OriginalTransactionReference | <OrgnlTxRef> | Component | Information for additional identification of the transaction. |
| 3.34 | [0..1] | ++++Amount | <Amt> | Component | |
| 3.35 | [1..1] | +++++InstructedAmount | <InstdAmt Ccy=“AAA”> | Amount | |
| 3.41 | [1..1] | ++++RequestedExecutionDate | <ReqdExctnDt> | DateTime | |
| 3.121 | [1..1] | ++++Debtor | <Dbtr> | Component | |
| 9.1.0 | [1..1] | +++++Name | <Nm> | Text | |
| 3.122 | [1..1] | ++++DebtorAccount | <DbtrAcct> | ||
| 1.1.0 | [1..1] | +++++Identification | <Id> | ||
| 1.1.1 | [1..1] | ++++++IBAN | <IBAN> | Identifier | |
| 1.1.11 | [1..1] | +++++Currency | <Ccy> | Code | |
| 3.123 | [1..1] | ++++DebtorAgent | <DbtrAgt> | ||
| 6.1.0 | [1..1] | +++++FinancialInstitutionIdentification | <FinInstnId> | ||
| 6.1.1 | [1..1] | ++++++BIC | <BIC> | Identifier | |
| 3.125 | [0..1] | ++++CreditorAgent | <CdtrAgt> | ||
| 6.1.0 | [1..1] | +++++FinancialInstitutionIdentification | <FinInstnId> | ||
| 6.1.1 | [1..1] | ++++++BIC | <BIC> | Identifier | |
| 6.1.2 | [1..1] | ++++++ClearingSystemMemberIdentification | <ClrSysMmbId> | ||
| 6.1.3 | [0..1] | +++++++ClearingSystemIdentification | <ClrSysId> | ||
| 6.1.4 | [1..1] | ++++++++Code | <Cd> | Code | |
| 6.1.6 | [1..1] | +++++++MemberIdentification | <MmbId> | Text | |
| 3.127 | [1..1] | ++++Creditor | <Cdtr> | ||
| 9.1.0 | [1..1] | +++++Name | <Nm> | Text | |
| 3.128 | [1..1] | ++++CreditorAccount | <CdtrAcct> | ||
| 1.1.0 | [1..1] | +++++Identification | <Id> | ||
| 1.1.1 | [1..1] | ++++++IBAN | <IBAN> | Identifier | |
| 1.1.2 | [1..1] | ++++++Other | <Othr> | ||
| 1.1.3 | [1..1] | +++++++Identification | <Id> | Text |
